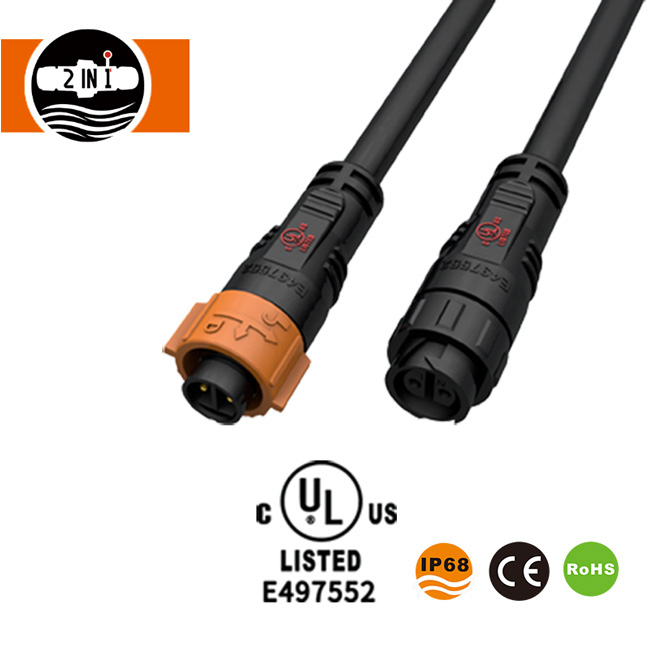

UL Listed M16 Waterproof Auto Lock Cable Connector
  • UL Listed M16 Waterproof Auto Lock Cable Connector UL Listed M16 Waterproof Auto Lock Cable Connector

UL Listed M16 Waterproof Auto Lock Cable Connector

HuaYi-FaDa UL Listed M16 Waterproof Auto Lock Cable Connector features push-lock installation, IP68 protection, and 2-pin, 3-pin, or 4-pin configurations for LED lighting and industrial automation. With 18–22 AWG wire compatibility and customizable cable types and lengths, the SA16 series supports flexible connection designs. Request a quote for custom cable assemblies and OEM/ODM options.

Send Inquiry

Rating: 5.0
(Rating Count: 1)

Product Description

UL Listed · M16 Auto Lock

HuaYi-FaDa UL Listed M16 Waterproof Auto Lock Cable Connector combines a push-lock connection mechanism with IP68 protection for LED lighting and industrial automation equipment. The SA16 molded-cable series offers 2-pin, 3-pin, and 4-pin configurations, yellow or blue plastic connection nuts, and customized cable types and lengths for different installation requirements.

Features

Push-Lock Connection for Convenient Installation

The SA16 uses a push-lock connection design for quick mating between compatible connector halves. Its black housing is paired with a yellow or blue plastic connection nut, providing a choice of appearance for different equipment designs. The plastic connection component is designed to resist corrosion associated with salt exposure.

SA16 push-lock connection design

Molded Cable and Solder-Type Options

The standard SA16 version is molded with cable, integrating the cable and connector into one assembly. Cable type and length can be customized for different wiring layouts.

A cable-free solder connector is also available and can be paired with the molded-cable version in compatible configurations. These options support lighting designs that require different termination arrangements.

IP68 Protection for Lighting and Automation

The connector features an IP68 protection rating and a silicone sealing component. Gold-plated copper-alloy contact pins provide the electrical connection, while the housing and insulated components use high-performance engineering plastics.

SA16 Product Specifications

Item Specification
Product name UL Listed M16 Waterproof Auto Lock Cable Connector
Model SA16 molded with cable
Connection method Push lock
Pin configurations 2-pin, 3-pin, 4-pin
Connector color Black
Nut color Yellow or blue
Protection rating IP68
Wire gauge 18–22 AWG
Cable diameter 4.0–9.0 mm
Cable type and length Customizable
Rated current 5–10 A
Operating voltage 300 V AC RMS
Withstand voltage 1500 V AC for 1 minute
Contact resistance <5 mΩ
Insulation resistance >500 MΩ
Mating durability ≥3,000 cycles
Operating temperature -40°C to +105°C
Housing material High-performance engineering plastics
Contact material Gold-plated copper alloy
Seal material Silicone
Flame rating UL94 V-0
Listed certifications UL, CE, RoHS
UL Listed M16 Waterproof Auto Lock Cable Connector

Applications

  • LED lighting: LED strips, LED wall washers, underground lights, rope lights, belt lights, curtain lights, and twinkle lights. Browse waterproof LED connectors.
  • Automation equipment: Proximity switches, flow-monitoring devices, fieldbus components, sensors, and actuators. View waterproof circular connectors.
  • Outdoor electrical equipment: Sealed cable connections for compatible lighting and electrical assemblies requiring IP68 protection.

SA16 Connector Configurations and Customization

The SA16 series supports different wiring arrangements through its molded-cable and cable-free solder connector versions. The push-lock design enables compatible connector halves to connect without a threaded coupling operation, making it suitable for lighting assemblies that require convenient installation and cable routing.

Customization is available for cable type and length, while 2-pin, 3-pin, and 4-pin versions cover different connection layouts. The black connector body can be paired with a yellow or blue plastic connection nut, allowing the assembly to fit different equipment designs.

SA16 connector configurations

FAQ

How does the SA16 push-lock connection work?

It mates by pushing compatible halves together without threaded coupling, allowing faster installation in tight spaces.

Can the molded-cable SA16 connect to the cable-free solder version?

Yes. In compatible configurations, one side can be the molded-cable version and the other side the cable-free solder connector.

How do I choose between 2-pin, 3-pin, and 4-pin SA16?

Match the pin count to the conductors required: 2-pin for simple power or signal pairs, 3-pin with ground or extra signal, 4-pin for more conductors.

What should I provide when customizing cable type and length?

Provide cable length, cable type, AWG or cross-section, number of cores, and pin configuration. A drawing helps confirm routing and connector orientation.

How should the SA16 be maintained to preserve IP68 sealing?

Use cable OD within 4.0–9.0 mm, ensure the silicone seal is properly seated, fully engage the push-lock, and inspect the seal for damage during maintenance.

Get a Quote for Your M16 Auto-Lock Connector

Request pricing for the UL Listed M16 Waterproof Auto Lock Cable Connector with your preferred pin count, cable specifications, and connector arrangement. HuaYi-FaDa also offers OEM/ODM support for customized cable assemblies and sample requests to help assess product fit for your application.

Share your pin count, cable specifications, and connector arrangement to receive a tailored quote. See the full UL waterproof cable connector range.
