M16 Waterproof Cable Connector

Design and Configuration Options

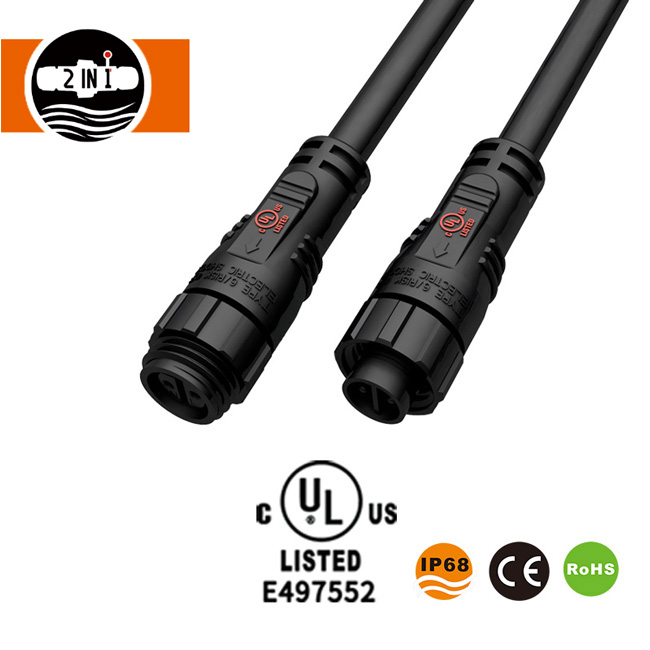

The M16 series includes molded-cable connectors and cable-free solder-type connectors. Compatible versions can be paired to connect pre-wired equipment with internal fixture wiring, providing flexibility for LED lighting assemblies and compact electrical devices. Compare this series with other waterproof cable connectors.

The molded-cable design integrates the cable with the connector, while the solder-type version accommodates installations requiring a separate electrical termination. Cable length and type can be customized for different equipment layouts.

Structural Features and Materials

• Plastic connection nut: The black nut is designed to resist corrosion associated with salt exposure, making it suitable for outdoor electrical applications.
• Sealing structure: A silicone seal supports the connector's IP68 protection rating against dust and water ingress under specified test conditions.
• Conductive contacts: Gold-plated copper-alloy contacts provide electrical continuity, with contact resistance below 5 mΩ.
• Insulating housing: High-performance engineering plastics provide housing and insulation, with a specified UL94 V-0 flame rating.

Specifications

Applications Across Lighting and Automation

• LED lighting

  Suitable for LED strips, wall washers, underground lights, rope lights, belt lights, curtain lights, and twinkle lights. The available cable and solder-type versions accommodate different fixture wiring arrangements. Browse waterproof LED connectors.

• Industrial automation

  Applicable to proximity switches, sensors, actuators, flow-monitoring equipment, and fieldbus components that use compact waterproof connections. View waterproof circular connectors for automation.

• Outdoor electrical equipment

  The sealed connection structure and corrosion-resistant plastic nut support use in compatible outdoor installations.

Why Choose Us

Three samples per part number are available free of charge for a one-time request, with shipping charged separately. Production lead time is approximately two to three weeks after order confirmation. Express delivery through DHL, UPS, FedEx, or TNT typically takes two to seven days, while sea freight is available for batch shipments.
