How Does a Screw Connector Improve Electrical Connections?

Screw connectors are essential components in electrical systems, providing secure, reliable, and easy-to-maintain connections. They are widely used in industrial, residential, and commercial electrical installations. This article explores their advantages, types, installation tips, and common questions, guiding you toward safer and more efficient electrical connections.

Table of Contents

• Overview of Screw Connectors
• Types of Screw Connectors
• Installation Process
• Advantages of Using Screw Connectors
• Maintenance and Safety Tips
• Frequently Asked Questions
• Contact HuaYi-FaDa Technology

Overview of Screw Connectors

Screw connectors are mechanical devices that secure electrical wires together using a threaded screw mechanism. They allow for a stable electrical connection while preventing accidental wire disconnections. Designed for both single and multiple wire connections, these connectors ensure consistent conductivity and safety in electrical circuits.

Types of Screw Connectors

Screw connectors come in several types, each designed for specific applications:

• Standard Screw Connector: Ideal for single and multi-wire connections in low-voltage circuits.
• Insulated Screw Connector: Offers additional protection against electrical shock and short circuits.

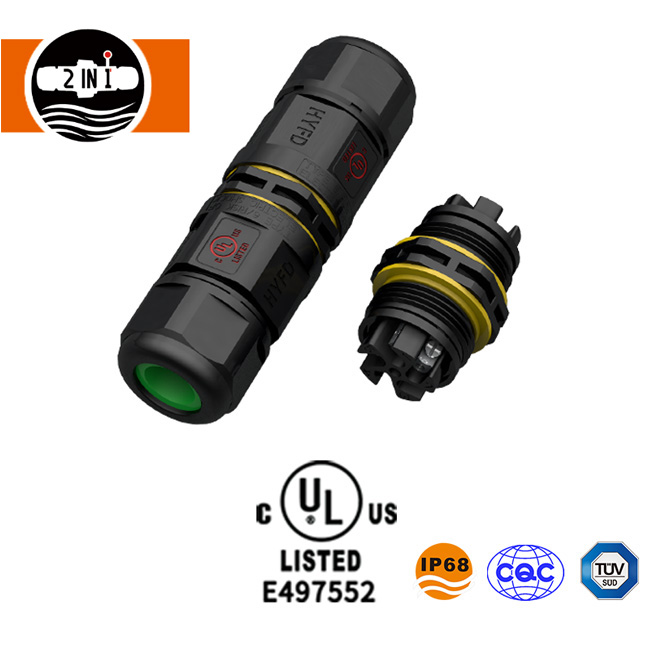

• Waterproof Screw Connector: Provides reliable connections in outdoor or humid environments.
• Multi-Port Screw Connector: Allows multiple wires to be connected in a single terminal for complex circuits.

Installation Process

Proper installation is crucial for ensuring reliable electrical connections. Follow these steps:

1. Strip the Wire: Remove 8-10mm of insulation from the wire end.
2. Insert the Wire: Place the stripped wire into the connector slot.
3. Tighten the Screw: Use a screwdriver to secure the wire. Avoid over-tightening to prevent wire damage.
4. Inspect Connection: Ensure no wire strands are exposed and the connection is firm.
5. Test: Verify conductivity and stability using a multimeter.

Advantages of Using Screw Connectors

Screw connectors offer multiple benefits compared to other types of electrical connectors:

• Secure Connections: Threaded screws provide a strong, reliable mechanical grip.
• Reusable: Easy to disconnect and reconnect wires without damage.
• Versatile: Suitable for various wire sizes and configurations.
• Cost-Effective: Durable and low-maintenance, reducing replacement costs.
• Enhanced Safety: Prevents accidental disconnections and reduces fire risk.

Maintenance and Safety Tips

Maintaining screw connectors ensures longevity and safety:

• Regularly inspect for loose screws or corrosion.
• Ensure proper torque is applied during installation.
• Avoid using damaged or bent wires.
• Use appropriate connectors for the environment (e.g., waterproof for outdoor use).
• Follow electrical codes and standards to ensure compliance.

Frequently Asked Questions

Q1: Can screw connectors be used for high-voltage applications?
A1: Screw connectors are typically rated for low to medium voltage (up to 250V). For high-voltage applications, specialized connectors should be used.

Q2: How many times can a screw connector be reused?
A2: Most screw connectors can be reused multiple times as long as the wire strands remain intact and the screw threads are undamaged.

Q3: Are waterproof screw connectors necessary for outdoor installations?
A3: Yes, waterproof screw connectors prevent moisture ingress, ensuring stable connections in outdoor or humid environments.
