What are the different waterproof ratings for connectors? What are the corresponding waterproof requirements?

In industries such as industrial, automotive, consumer electronics, and outdoor equipment, waterproof connectors are key components that ensure stable operation of equipment in humid, dusty, or underwater environments.

The waterproof rating standards for connectors are primarily based on the IEC 60529 IP (Ingress Protection) standard established by the International Electrotechnical Commission (IEC) and the IP rating standards in ISO 20653. Chinese domestic standards refer to the standard established by QC/T 413.

Different standards reflect different application requirements and characteristics, and each standard is continuously updated and improved as applications develop.

Common IP standards are explained below:

Meaning of IP Protection Rating

First Number (Dustproof Rating):Ranges from 0 to 6, indicating the ability to protect against the intrusion of solid foreign objects. The higher the number, the stronger the protection. For example, rating 0 provides no protection, while rating 6 completely prevents dust intrusion.

Second Number (Waterproof Rating):Ranges from 0 to 8, indicating the ability to protect against the intrusion of liquid water. The higher the number, the better the waterproof performance.

Dustproof Rating (First Digit)

Dustproof ratings range from 0 to 6, representing the equipment's ability to protect against dust:

IP0X: No protection, completely no dustproof capability.

IP1X: Protects against the ingress of solid objects larger than 50mm in diameter.

IP2X: Protects against the ingress of solid objects larger than 12.5mm in diameter.

IP3X: Protects against the ingress of solid objects larger than 2.5mm in diameter.

IP4X: Protects against the ingress of solid objects larger than 1mm in diameter.

IP5X: Protects against dust ingress, but not completely; a small amount of dust can be tolerated inside the equipment.

 IP6X: Completely protects against dust ingress; the inside of the equipment is dust-free.

Specific Waterproof Rating (Second Digit) and Requirements

• IPX1: No effect from vertical dripping water; can be placed in a sheltered location during light rain.

• IPX2: Unaffected by dripping water at a 15° tilt, slightly stricter than IPX1, suitable for equipment placed at an angle.

• IPX3: Resistant to water spray from angles up to 60°.

• IPX4: Resistant to splashing water from all directions.

• IPX5: Resistant to jet spray, withstands strong jet spray from all directions.

• IPX6: Resistant to strong jet spray, withstands strong water flow from all directions.

• IPX7: Resistant to immersion, can be submerged in water at a certain depth and for a certain period of time, such as within 1 meter and for no more than 30 minutes.

• IPX8: Resistant to continuous immersion, can be continuously submerged in water at a certain depth and for a certain period of time, such as connectors used in deep-sea exploration equipment.

There is a specially defined rating: IPX9K.

Previously, IPX4K, IPX6K, and IPX9K were exclusive to the automotive industry, but later their application expanded to other industries.

In the ISO 16750, DIN 40050, and ISO 20653 series, IPX9K is the most stringent waterproof rating. This includes the IPX9K test in the domestic automotive industry standard QC/T417.1-2001, "Test Methods and General Performance Requirements for Automotive Wiring Harness Connectors."

With subsequent updates to standards and the addition of new application areas, the application fields of IPX9K have continued to expand.

• IPX9K: The highest waterproof rating, capable of being cleaned under high temperature and high pressure conditions, suitable for food processing equipment, agricultural machinery, high-pressure washers, and other equipment.

Brand Strength Recommendation: Why Choose HuaYi-FaDa Technology

HuaYi-FaDa Technology is a professional domestic enterprise specializing in the R&D, production, and sales of waterproof connectors, possessing years of manufacturing experience, a complete production system, and mature quality control processes.

We focus on the design and manufacturing of waterproof connection solutions, with products covering multiple series including signal connectors, power connectors, and network connectors, widely used in industrial automation, outdoor lighting, new energy, communication equipment, stage equipment, and monitoring systems. Our Core Advantages:

Professional Factory Strength: We have our own mold-making, injection molding, wire manufacturing, and assembly workshops, providing a one-stop service from design to delivery, ensuring stable and controllable quality and delivery time.

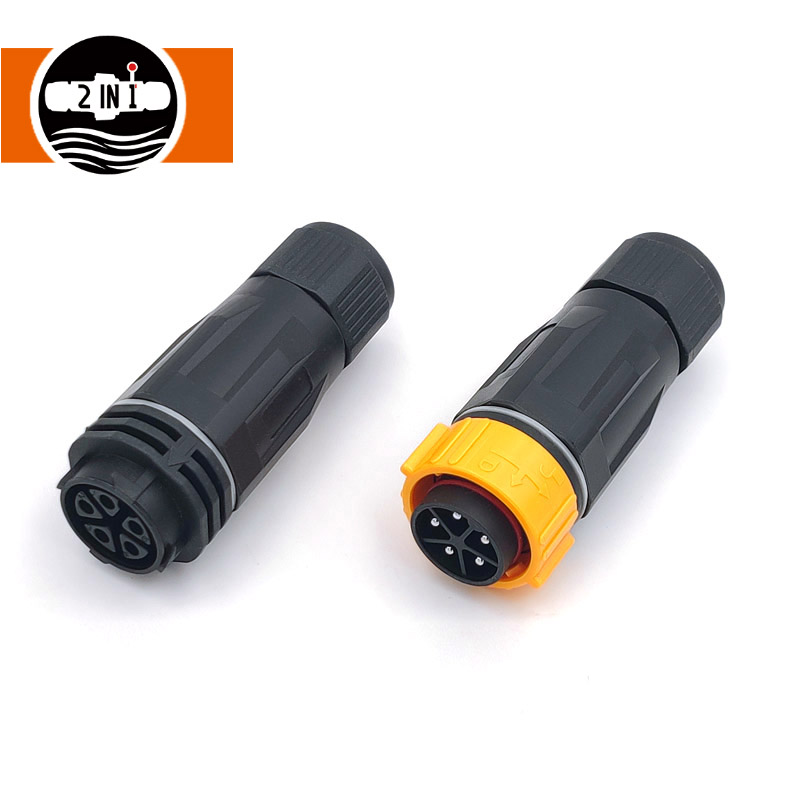

Full Range of Waterproof Products: We offer M8 miniature connectors, 40A high-current power connectors, RJ45 waterproof network connectors, screw-locking waterproof connectors, etc., meeting the connection needs of various devices.

Stable and Reliable Product Performance: Utilizing high-specification engineering plastics, copper alloy contacts, and silicone sealing structures, our products achieve an IP67/IP68 protection rating, allowing for long-term use in humid, dusty, and high/low temperature environments.

Comprehensive Certifications and Quality Control: Our products are CE, RoHS, and other certifications. Each product undergoes multiple rounds of testing before leaving the factory to ensure stable connections and safe use.

Flexible Customization and Fast Service: We support customization requirements for wire length, connectors, number of cores, and installation methods. We provide sample testing, technical support, fast delivery, and after-sales service.
