Summary: The M26 Waterproof Power Connector is designed to provide secure and reliable electrical connections in demanding environments. This article explores its key features, applications, installation tips, and FAQs to help users select the right connector for industrial, outdoor, and marine applications.
Table of Contents
- Overview of M26 Waterproof Power Connector
- Key Features and Benefits
- Applications in Various Industries
- Installation Guidelines
- Technical Specifications
- Frequently Asked Questions
- Contact Us

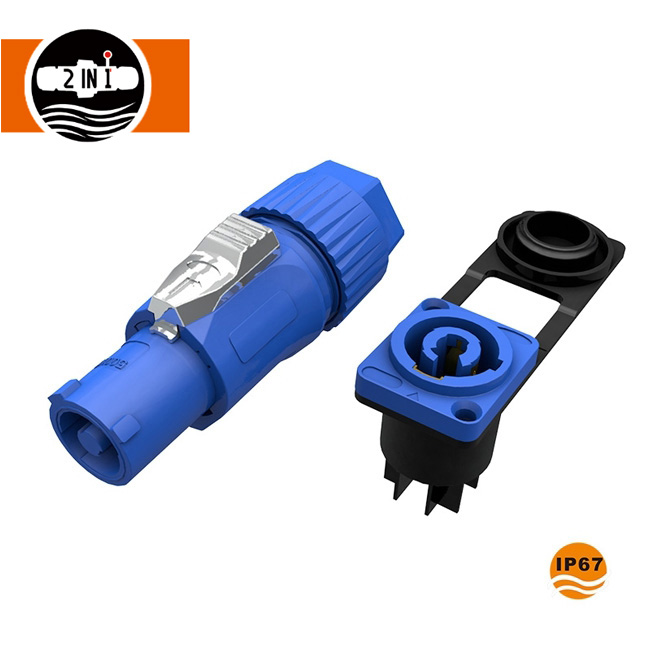

Overview of M26 Waterproof Power Connector
The M26 Waterproof Power Connector is a high-performance solution for connecting electrical systems in wet, dusty, or corrosive environments. It is engineered for durability and ensures a stable electrical connection without leakage or short circuits. Suitable for both industrial and outdoor installations, it provides long-lasting performance in extreme conditions.
Key Features and Benefits
- Waterproof Rating: IP67-certified for complete protection against water and dust ingress.
- Durable Construction: Made from high-strength materials resistant to corrosion and wear.
- Secure Connection: Threaded coupling ensures stable contact even under vibration.
- Easy Maintenance: Modular design allows quick replacement of parts without specialized tools.
- Wide Operating Range: Supports temperatures from -40°C to +85°C.
- Compatibility: Supports multiple wire gauges and standard industrial power systems.
Applications in Various Industries
The M26 Waterproof Power Connector is widely used in sectors that demand reliability and environmental protection:
| Industry | Application |
|---|---|
| Industrial Automation | Connection of motors, sensors, and control equipment in factories |
| Marine & Offshore | Electrical connections in boats, docks, and offshore platforms |
| Renewable Energy | Connecting solar panels and wind turbine components |
| Outdoor Lighting | Powering street lights and landscape lighting systems |
| Transportation | Electrical connections for railway signaling and electric vehicles |
Installation Guidelines
- Prepare the Cable: Strip the insulation according to connector specifications.
- Insert Wires: Insert wires fully into the connector terminals ensuring tight contact.
- Tighten Coupling: Secure the threaded coupling to prevent water ingress.
- Check Connection: Test for continuity and voltage stability before final assembly.
- Seal and Protect: Use additional gaskets if necessary for extreme outdoor exposure.
Technical Specifications
| Parameter | Specification |
|---|---|
| Connector Type | M26 Circular Waterproof Power Connector |
| Number of Contacts | 2–7 pins |
| Rated Voltage | 250V AC/DC |
| Rated Current | 10–20A depending on pin configuration |
| Ingress Protection | IP67 |
| Temperature Range | -40°C to +85°C |
| Material | Aluminum alloy shell, copper alloy pins, silicone rubber seal |
Frequently Asked Questions
- What makes the M26 connector waterproof?
- The connector uses high-quality silicone seals and threaded coupling to achieve IP67 protection, preventing water and dust from entering.
- Can it be used outdoors in harsh climates?
- Yes, it is rated for extreme temperatures and designed to resist corrosion, UV radiation, and mechanical stress.
- Is it easy to replace the connector if damaged?
- Yes, its modular design allows easy replacement of individual parts without specialized tools.
- What wire sizes are compatible?
- The M26 supports multiple wire gauges, typically 16–22 AWG, suitable for most industrial applications.
Contact Us
For reliable and durable M26 Waterproof Power Connectors, trust ShenZhen 2 IN 1 Technology Co., Ltd. to provide premium solutions tailored to your electrical connection needs. Contact us today to request a quote or technical assistance.
