15A Waterproof Male Female Screw Connector

The 15A Waterproof Male Female Screw Connector, from supplier HuaYi-FaDa Technology, is a high-protection electrical connection component. This series supports 2-pole, 3-pole, 4-pole, and 5-pole pin configurations, covering a wide range of needs from basic power supply to complex signal control. Its core design advantage lies in the use of screw terminals, allowing technicians to complete wiring directly on-site with a screwdriver, eliminating the need for specialized soldering tools and significantly improving installation efficiency.

Parameter of 15A Waterproof Male Female Screw Connector

Key Features

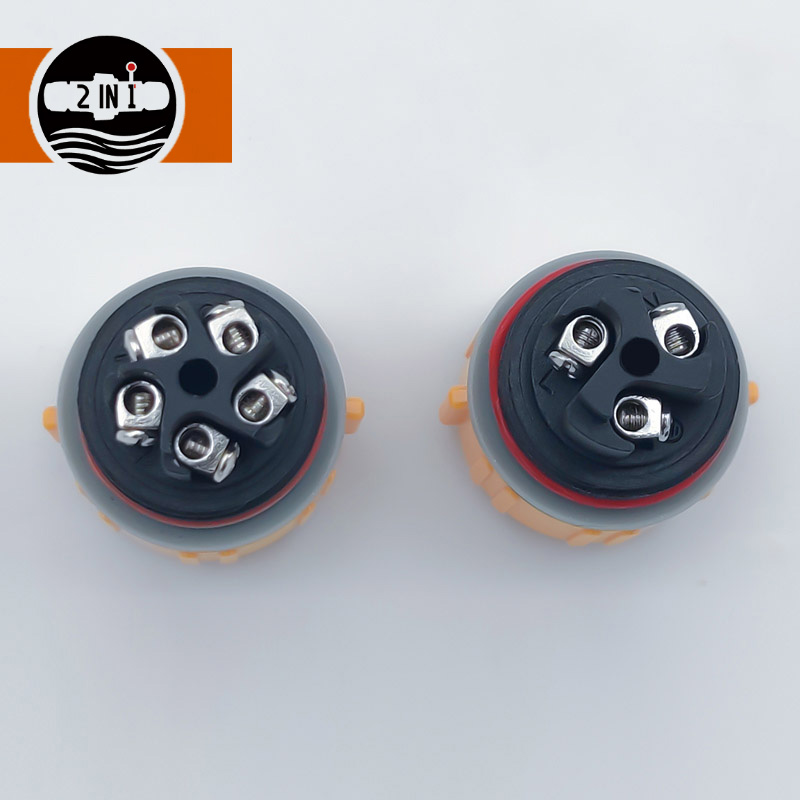

Rapid On-Site Assembly: The screw-press design makes on-site maintenance extremely simple in complex outdoor environments.

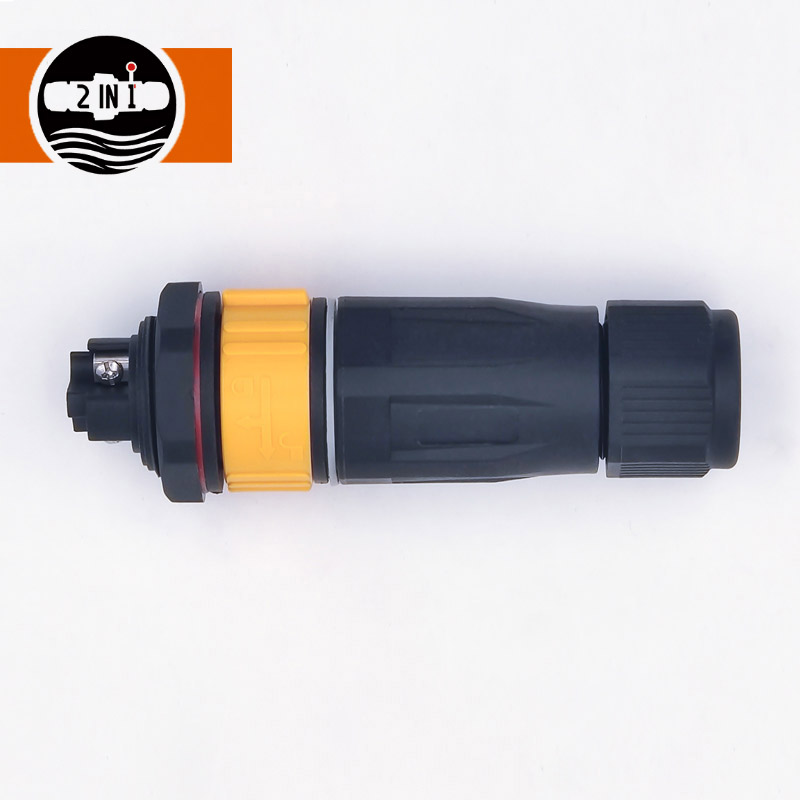

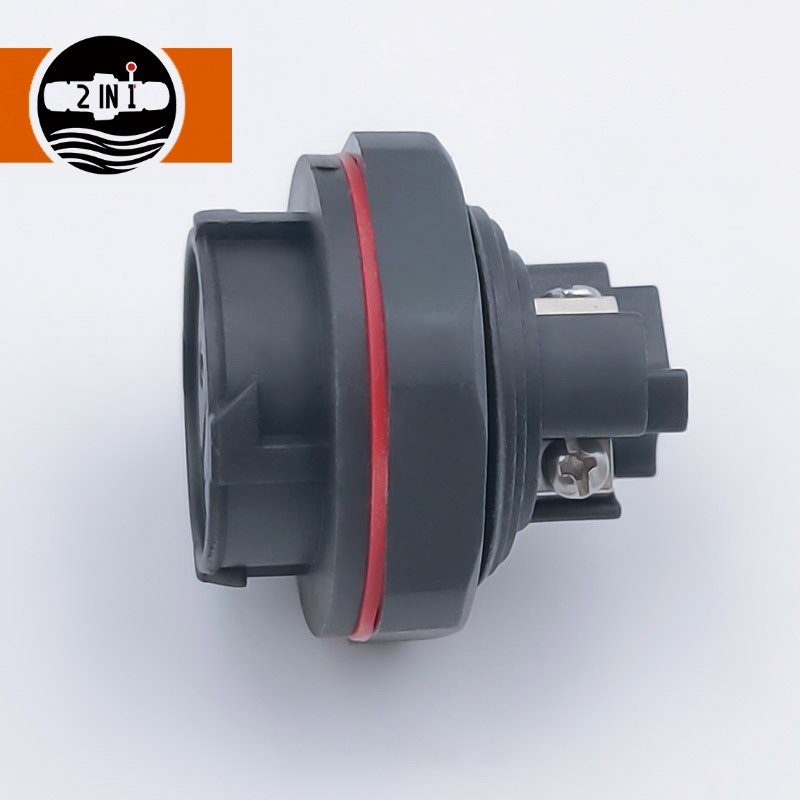

High adaptability: It provides a matching panel mount connector, which can easily realize flexible switching between board-to-wire, wire-to-wire and wire-to-board, to meet the needs of product integration design.

Excellent weather resistance: Made with brand new nylon raw materials, it has excellent UV resistance and anti-aging properties, ensuring that the structure will not crack under extreme temperature differences.

Robust contact performance: A 3µm thick nickel undercoat effectively prevents contact pin oxidation and maintains low contact resistance under a high current load of 15A.

Wide Range of Applications

HuaYi-FaDa Technology's 15A Waterproof Male Female Screw Connector has been widely used in the following scenarios:

Outdoor lighting projects: LED streetlights, wall washer lights, landscape lighting projects.

Industrial Automation: Sensor connectivity, power transmission for factory robots.

New Energy Equipment: Solar photovoltaic module connectivity, branch lines for energy storage systems. Marine and Ocean Equipment: Waterproof connections for dockside power transmission and shipboard electronic equipment.

Why Choose HuaYi-FaDa Technology?

As a professional manufacturer of 15A Waterproof Male Female Screw Connector, we possess core competitiveness in quality control and supply chain management:

Raw Material Guarantee: We insist on using branded virgin nylon materials, rejecting recycled materials, ensuring the flame retardancy and mechanical strength of our products from the source.

Precision Manufacturing Process: We have introduced high-precision molds and automated assembly equipment to ensure that the male and female insertion and extraction forces of every pair of 15A Waterproof Male Female Screw Connector meets standards.

Comprehensive Testing Support: Every batch of products undergoes airtightness testing, salt spray testing, and current load cycle testing before leaving the factory.

Timely Logistics and After-Sales Service: We promise to respond quickly to customer inquiries and provide long-term technical support and after-sales warranty solutions.

FAQ

Q: What is the waterproof rating of this connector?

A: The 15A Waterproof Male Female Screw Connector, when properly assembled, typically achieves an IP67/IP68 protection rating, effectively protecting against rain, dust, and temporary immersion.

Q: Are there any requirements for the cable diameter during installation?

A: Yes, to ensure the compression effect of the seal, it is recommended to use a cable outer diameter between 6.0mm and 14.0mm.

Q: Can you provide samples for testing?

A: HuaYi-FaDa Technology supports sample requests. Before bulk orders, we can provide samples for your engineering team to conduct compatibility and environmental simulation tests.

Product Details

Connection:
