10A Waterproof Male Female Screw Connector

As a connector product from a Chinese manufacturer, HuaYi-FaDa Technology's 10A Waterproof Male/Female Screw Connector is primarily used in electrical equipment and outdoor systems requiring waterproof and dustproof connections. The product features a male-female mating structure, securing the connection via a threaded locking mechanism, which reduces the likelihood of loosening and maintains stable circuit connections.

For equipment manufacturers or engineering installation projects, the 10A Waterproof Male/Female Screw Connector simplifies the assembly process for electronic equipment, making mass production or field installation more convenient. HuaYi-FaDa Technology has long provided a variety of waterproof connector solutions, offering stable connection methods for different application scenarios.

Parameter of 10A Waterproof Male Female Screw Connector

Product Structure and Basic Principles

What is a 10A Waterproof Male/Female Screw Connector?

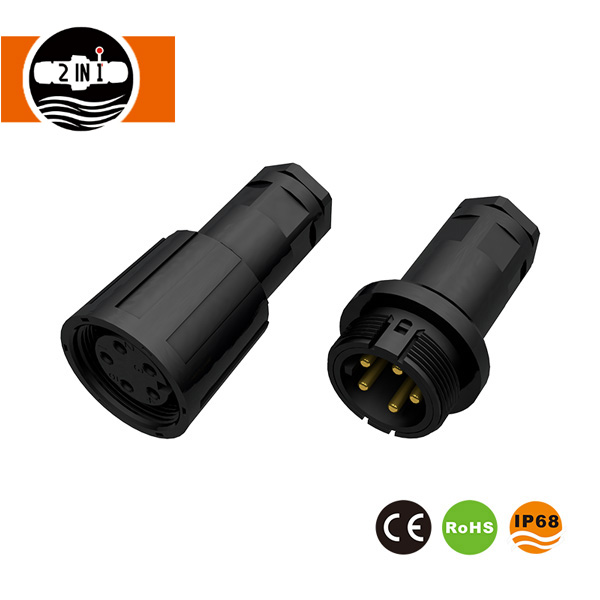

The 10A Waterproof Male/Female Screw Connector is a waterproof electrical connector rated for 10A. It consists of a male and a female connector, connected via a threaded locking mechanism.

Main Structure Includes:

Male Connector

Female Connector

Screw Terminal

Sealing Ring Structure

Threaded Locking Structure

The advantage of this structure is its simple installation; wires can be directly secured by screw crimping, eliminating the need for complex tools.

Core Product Features

Screw Terminal Connection

This connector uses a screw crimping method to secure wires, suitable for field wiring or maintenance replacement, reducing soldering operations.

Multiple Pole Counts Available

The product offers multiple pin count specifications:

2 pole, 3 pole, 4 pole, 5 pole, 6 pole, 8 pole

Users can select the appropriate model according to the wiring requirements of different equipment.

Waterproof Design

The connector is equipped with a sealing structure, suitable for some outdoor equipment or humid environments, reducing moisture ingress into the interface.

Male-female connection design

The male-female connection method helps improve installation efficiency and also facilitates equipment maintenance and disassembly.

Product Details

Connection:

Product Qualification of 10A Waterproof Male Female Screw Connector

This 10A Waterproof Male Female Screw Connector has passed CE, RoHS certificate. It is with IP68 waterproof level.

Application Areas

The 10A Waterproof Male/Female Screw Connector is used in a variety of electrical equipment, such as:

Outdoor Lighting Equipment

For example, landscape lights, garden lights, and power connection systems.

Industrial Electrical Equipment

Used in control systems, power connection modules, and other equipment.

LED Power Systems

Electrical connections between LED power modules or controllers.

Automation Equipment

Power connections or signal line connections for equipment.

In these applications, HuaYi-FaDa Technology's 10A Waterproof Male/Female Screw Connector helps achieve a simpler electrical connection structure.
