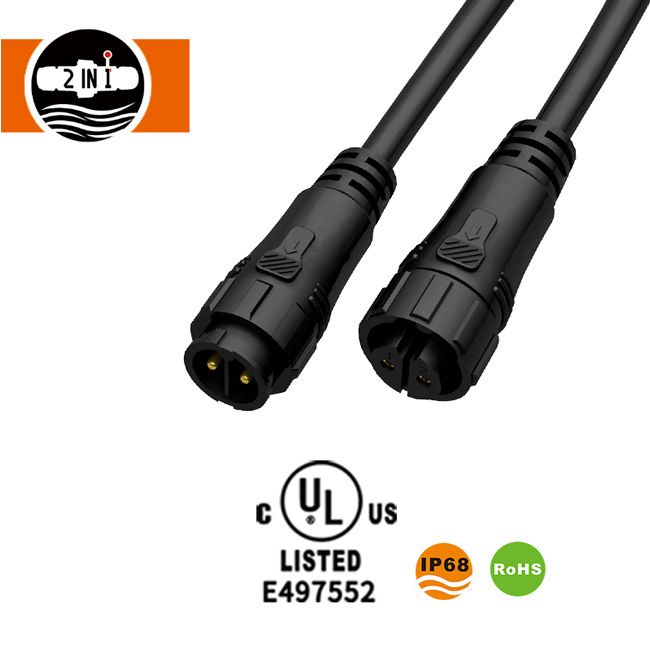

IP68 M19 Waterproof Solder Seal Wire Connectors

As a leading global manufacturer of industrial connectors, HuaYi-FaDa Technology is committed to providing reliable electrical connection solutions. Our IP68 M19 Waterproof Solder Seal Wire Connectors are designed for harsh environments and are widely used in outdoor lighting, automation equipment, and new energy fields. This series supports diverse configurations from 2 to 14 pins and offers mixed power and signal routing options. Combined with robust solder terminals, it ensures excellent conductivity and sealing even in deep water or extreme weather conditions.

Technical Advantages and Design Highlights

1. Superior Sealing and Protection Performance

Our IP68 M19 Waterproof Solder Seal Wire Connectors feature high-precision silicone sealing rings and a nylon PA66 protective shell. PA66 material offers excellent pressure resistance, explosion resistance, and deformation resistance, ensuring long-term stable operation of the connectors in complex outdoor or underwater environments.

2. Stable Solder Terminals

Compared to traditional crimping methods, soldered connections provide higher mechanical strength and vibration resistance. Combined with copper alloy pins with optimized gold plating thickness, they not only effectively resist electromagnetic interference but also significantly reduce contact resistance (<5mΩ), extending device lifespan.

3. Multi-pin and Hybrid Configurations

We offer a full range of support from signal transmission to high-current power supply. This includes various power and signal mixed pin layouts such as 2+3, 2+4, and 3+4, helping engineers simplify wiring design and reduce the number of openings on equipment.

Parameter of IP68 M19 Waterproof Solder Seal Wire Connectors

Product Details

Connection:

Product Qualification of IP68 M19 Waterproof Solder Seal Wire Connectors

This IP68 M19 Waterproof Solder Seal Wire Connectors has passed CE, RoHS, CQC certificate. It is with IP68 waterproof level.

Typical Applications

Due to their superior weather resistance, IP68 M19 Waterproof Solder Seal Wire Connectors are widely used in the following fields:

Outdoor Lighting Systems: LED streetlights, landscape lights, wall washers.

Industrial Automation: Sensor connections, robot control cables.

New Energy: Solar photovoltaic modules, inverters, and eco-friendly electric vehicle charging systems.

Communication Equipment: 5G base stations and various outdoor communication terminals.

Why Choose HuaYi-FaDa Technology?

As a professional manufacturer of IP68 M19 Waterproof Solder Seal Wire Connectors, we have cultivated deep expertise in the waterproof connector field for many years, possessing a strong manufacturing foundation.

Full-Industry Chain Manufacturing: The company has independent mold processing workshops, injection molding workshops, wire extrusion production lines, and hardware processing workshops, with a factory area exceeding 8,000 square meters.

Strict Quality Control: We implement a 100% full inspection system, rather than just batch sampling. All products are CE, RoHS, CQC, UL, and TUV certified.

Recognized by Leading Companies: As an OEM supplier for Amphenol, Philips (Signify), and OSRAM for over 7 years, our quality standards are on par with leading international brands.

Speed Response: We offer free samples (3-5 pieces per item), with standard order lead times within 2-3 weeks, and support OEM/ODM customized development.

Frequently Asked Questions (FAQ)

Q: What wire diameter does your M19 connector support?

A: IP68 M19 Waterproof Solder Seal Wire Connectors are compatible with cables from 13AWG to 20AWG. The maximum recommended cable outer diameter (OD) is within 11.5mm.

Q: What is the difference between soldered and screw-type connections?

A: Soldered connections are more compact and shock-resistant, suitable for permanent installations; screw connections allow for tool-free on-site maintenance. We offer both types.

Q: Does this product have a warranty period?

A: Yes, we offer a 3-year warranty on all connectors shipped from the factory.
